How to Compress a PDF Without Losing Readability

Work through a two-page sample PDF, from uploading and choosing a profile to downloading and checking the result. Aim for a file that is small enough to share and still easy to read.

MV Tools Editorial TeamUpdated 2026-09-108 min read

Open PDF Compressor

Keep the original and check the limit

Save the original PDF and find out the recipient’s attachment limit before choosing settings. For practice, imagine a 350 KB limit: our 375 KB sample is too large. This is a hypothetical destination limit, not the tool’s upload limit.

Download the original above to follow along. It contains two self-authored English pages with fictional chart data and a table, rendered as scanned pages. The tool handles one PDF up to 100 MB. Do not upload private IDs or contracts just to practice.

Select the PDF and verify the file

Open the PDF Compressor using the button above. These are real English desktop screenshots; on a smaller screen the controls may move, but their order is unchanged.

Choose one PDF
Click the upload area in the workspace and choose a .pdf file from your device. The practice file is named mvtools-pdf-demo.pdf.
Check the name and size
The selected area should show mvtools-pdf-demo.pdf and 375 KB. Click it again if you picked the wrong file. Selecting the file alone does not start compression.

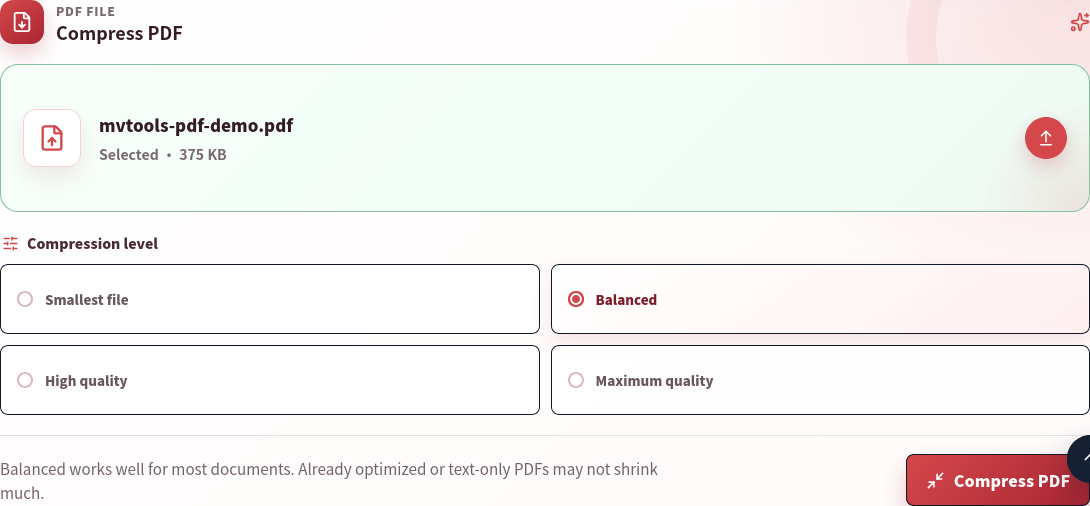

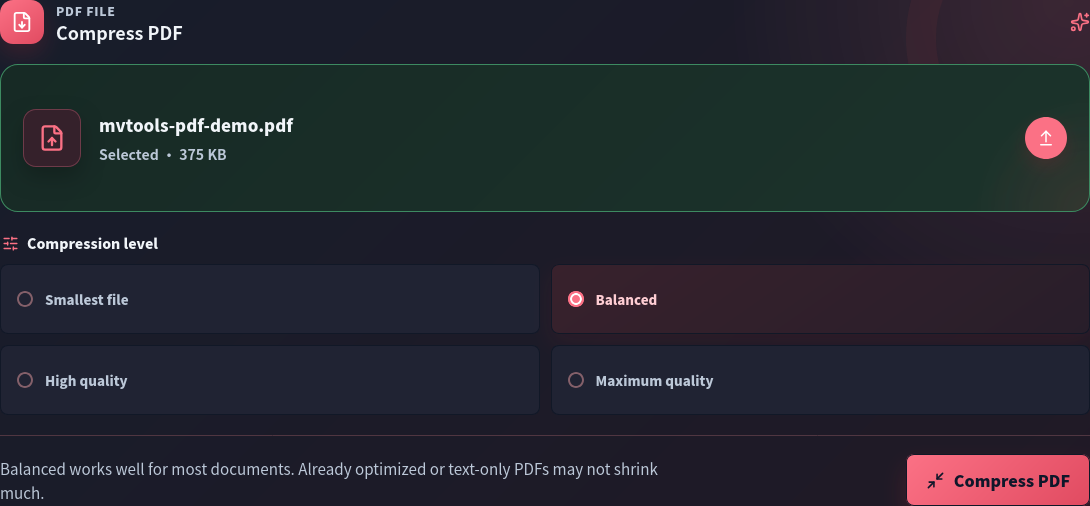

PDF Compressor with mvtools-pdf-demo.pdf selected at 375 KB, four profiles and the Compress PDF button — Figure 1 · Check the name and size. Balanced is selected; compression has not started.

Figure 1 · Check the name and size. Balanced is selected; compression has not started.

Start with Balanced

Keep the default Balanced profile for a first comparison. Its name does not guarantee a smaller file. Review the output before moving toward smaller size or higher image quality.

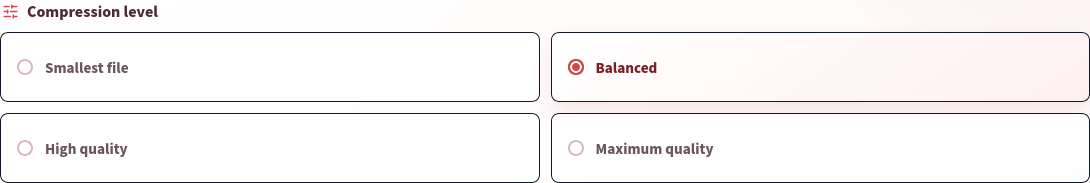

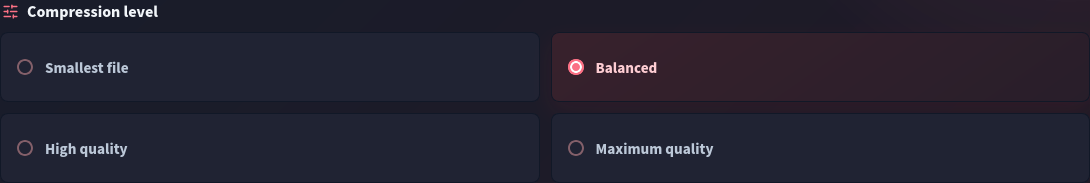

The four actual profiles: Smallest file, Balanced, High quality and Maximum quality — Figure 2 · Click anywhere on a profile option. Its radio marker shows the selection.

Figure 2 · Click anywhere on a profile option. Its radio marker shows the selection.

Profile	When to try it	What to check
Smallest file	The first result still exceeds the upload limit	Small scanned text and image detail
Balanced	Email, routine sharing and portal attachments	Actual size and readability
High quality	Small print, diagrams or print review matter	Whether the larger file still meets the limit
Maximum quality	Visual detail matters more than maximum reduction	Actual output size, not just the profile name

Run, read the result and download

Click Compress PDF and wait. Do not submit again while it is processing. When finished, the tool shows status, file sizes and a download button.

Read the numbers, not only the status
COMPLETED means a PDF was produced, not that it became smaller. Here Balanced changes 375 KB to 387 KB, with -3.4% reported saving. That minus sign means the output grew; it does not meet our hypothetical 350 KB limit.
Download a comparison copy
Click Download PDF. Save mvtools-pdf-demo-compressed.pdf without replacing the original. We keep this result so you can compare it, then retry with a different profile below.

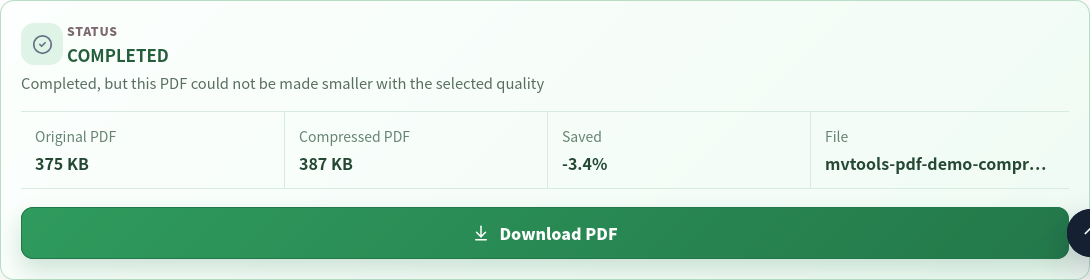

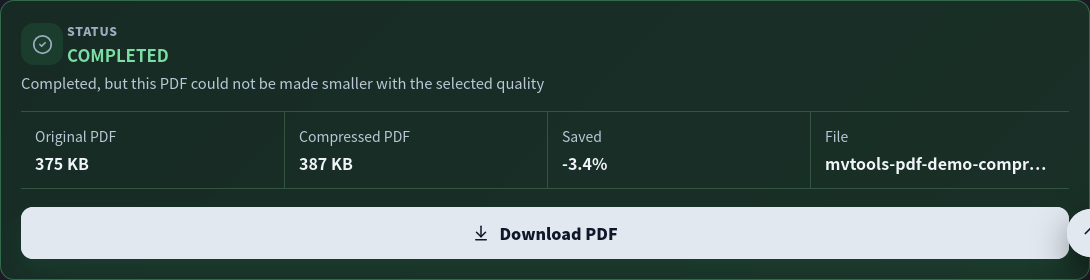

Completed Balanced run: 375 KB original, 387 KB output and -3.4% reported saving — Figure 3 · Actual run on 2026-09-10: 383728 → 396762 bytes. A negative saving means this output is larger.

Figure 3 · Actual run on 2026-09-10: 383728 → 396762 bytes. A negative saving means this output is larger.

Compare the same pages

Open both PDFs at normal reading size, then zoom into the chart values, table and small-print line. The images below show the same page rendered at the same size.

A webpage thumbnail is not a substitute for inspecting the PDF. Download both files at the top; repeat these checks on the smaller retry result too.

Page count and order: two pages, with no missing or blank pages.
Text and numbers: no missing characters or unreadable small print.
Tables and charts: labels, thin lines and values remain intact.
Intended use: size meets the limit. Also check signatures and scan any required codes in your own files.

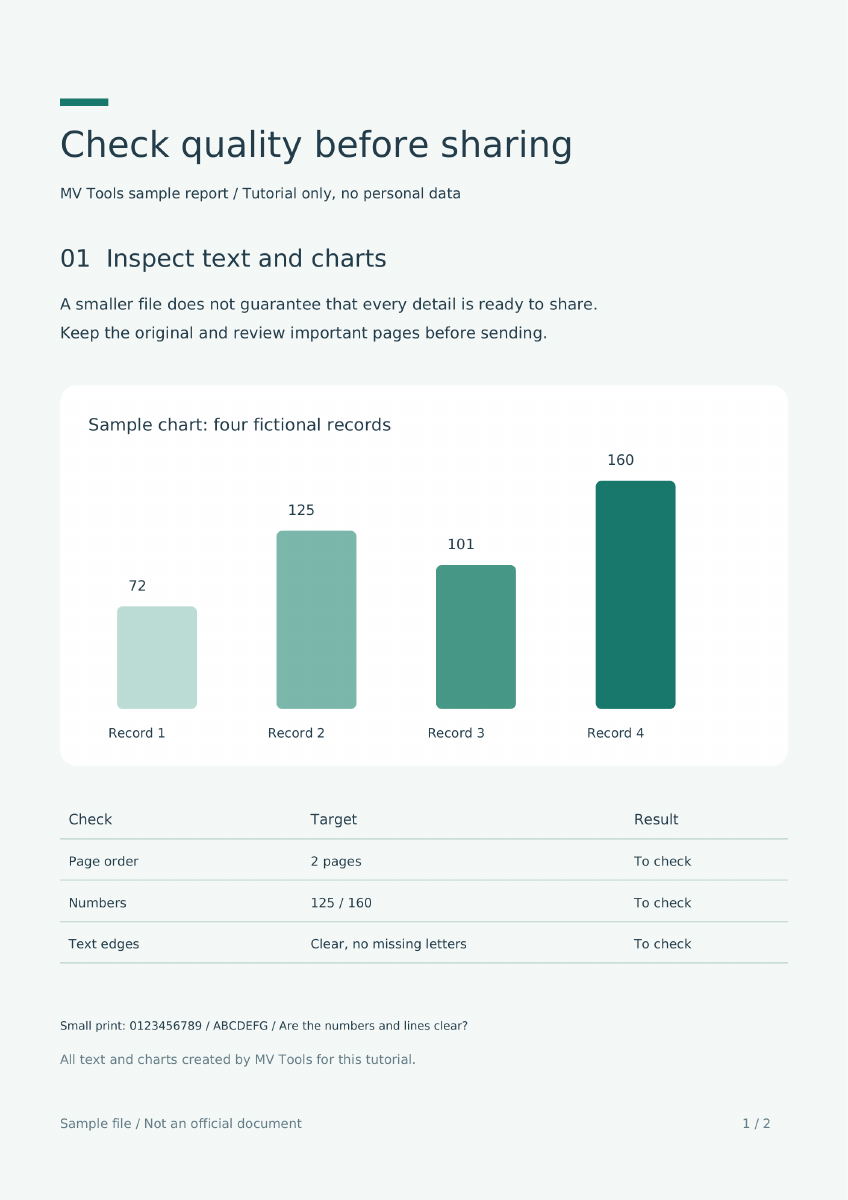

Original English sample page with text, a four-bar chart, table and small-print line — Original, page 1. The full two-page file is 375 KB; enlarge or download it to inspect.

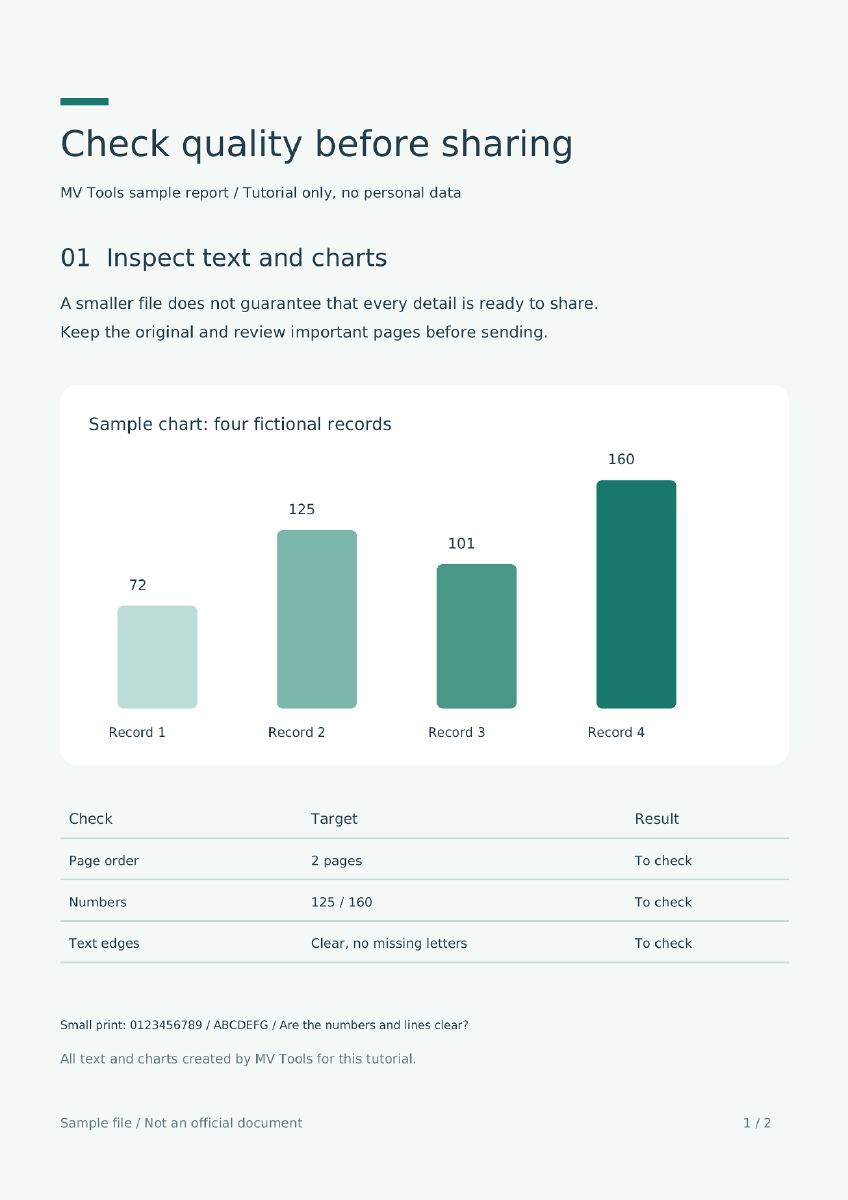

The same page after Balanced processing, showing text, chart values and table lines — Balanced output, page 1. The full file is 387 KB. These previews use the same rendering size.

Retry and troubleshoot

Our first output grew, so we selected the original again, chose Smallest file and ran the tool. This actual retry produced 115 KB, saving 69.4%. It is under the hypothetical 350 KB limit, but still needs the readability checks above.

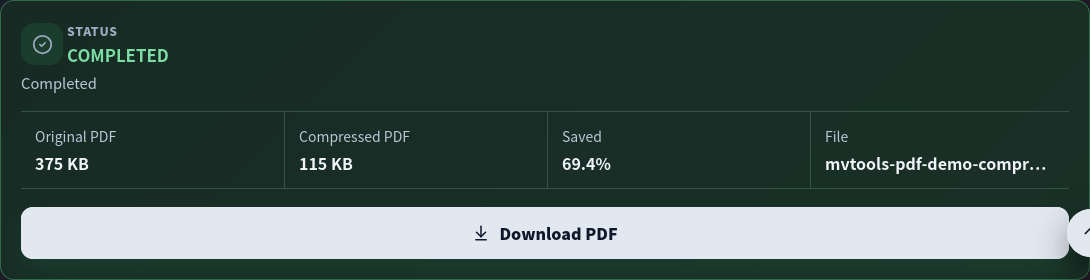

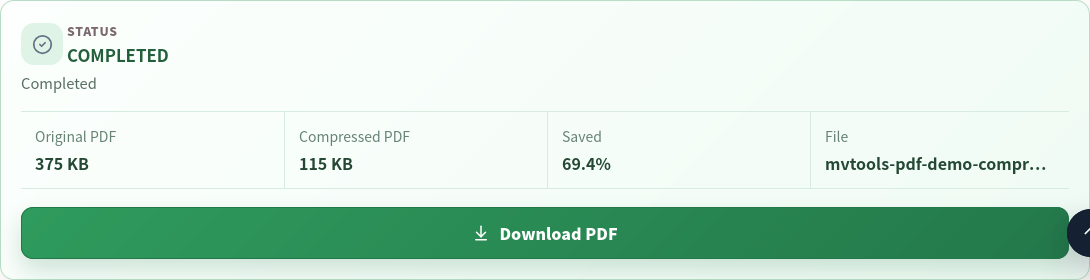

Actual Smallest file retry: 375 KB original, 115 KB output and 69.4% saved — Figure 4 · Retried from the original using Smallest file: 383728 → 117365 bytes. Check readability before sharing.

Figure 4 · Retried from the original using Smallest file: 383728 → 117365 bytes. Check readability before sharing.

Problem	Next action
Still over the limit	Try Smallest file from the original. If quality suffers, keep only needed pages or improve the source export.
Blurry text or images	Retry the original with High quality or Maximum quality. If the original is blurry, rescan or export it again.
No reduction or a larger output	The source may already be optimized. Keep the original if it serves your purpose better.
Failure or a long wait	Check that the PDF opens locally, is not password-protected and is under 100 MB. Re-export damaged or complex documents from the source application.
Expired download	Select the original and run again. A task download URL is not a permanent sharing link.

Know where files are processed

This tool uploads your PDF to the server and compresses it with Ghostscript; it is not browser-only processing. Upload only files you are comfortable processing online.

Temporary files have a default retention of 30 minutes with periodic cleanup. Processing has a default two-minute timeout. Download promptly; task results are not permanent storage.

Frequently asked questions

Do I need an account?

These screenshots were captured while signed out. You do not need an account to follow this PDF compression workflow.

Why are my numbers different?

Images, fonts and existing optimization affect the result. Our Balanced output grew; the Smallest file retry reduced it. Neither result predicts the saving for your file.

What if my screen looks different?

The screenshots show the English desktop interface on 2026-09-10. Look for the file selector, compression level, Compress PDF and Download PDF; layout and colors depend on screen size and theme.
