How to Choose a Source Image for SVG Vectorization and Favicon Files

A practical workflow for separating a traceable raster logo from a photo, reviewing generated SVG paths, and turning a simple square mark into a browser-local favicon package.

MV Tools Editorial TeamUpdated 7 min read

Open tool

Start with the job the final file must do

SVG is useful when a simple mark needs to scale cleanly or be edited as paths. A favicon is a compact identity mark that must remain recognizable at 16 or 32 pixels. Neither goal means every image should be converted: keep the original source and choose the output from the final use, not from a format label alone.

A PNG-to-SVG conversion traces raster pixels into vector paths. It is not a recovery of the original artwork or a normal file conversion. Logos, icons, line art, silhouettes, flat illustrations, simple diagrams, and high-contrast shapes are good candidates. Detailed photographs, soft shadows, gradients, textures, and noisy backgrounds often create many paths, large files, and a result that looks less natural than the PNG.

A simple mark is more traceable and remains more recognizable at favicon sizes.
A simple mark is more traceable and remains more recognizable at favicon sizes.

Prepare a clean PNG before tracing

Use the sharpest available PNG, crop unnecessary margins, and remove accidental background noise or tiny details that would become unwanted paths. If the true original is already an SVG, PDF vector, or design source, preserve and use that original rather than tracing a raster export back into an approximation.

Choose color mode for a color logo or icon. Choose black and white for a stamp, single-color mark, line art, or silhouette. Start with medium detail for an ordinary logo or icon; lower detail generally produces a simpler, smaller SVG, while higher detail can keep more edges at the cost of processing time and output complexity.

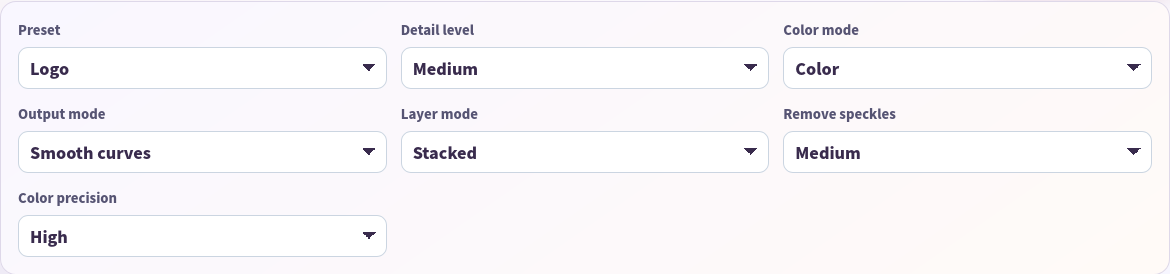

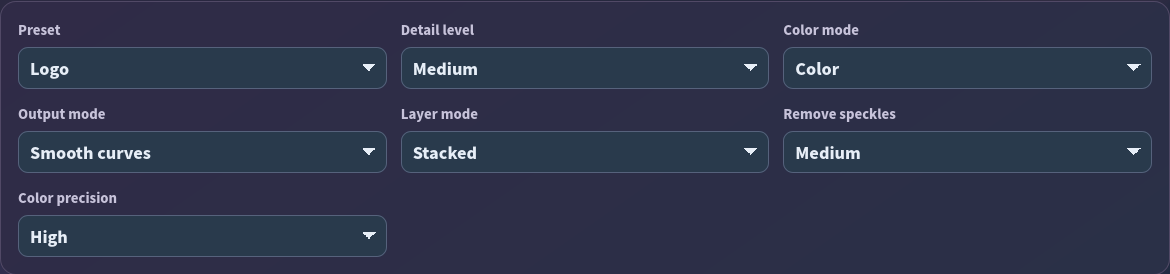

Start with one representative image and inspect the chosen settings.
Start with one representative image and inspect the chosen settings.

Inspect one result before running a batch

Use the single PNG-to-SVG converter to tune one representative image and inspect it at the sizes where it will actually appear. Check curves, sharp corners, transparent holes, thin strokes, colors, and the SVG file size. A visually plausible preview is not enough if the file will be edited, embedded in a UI, or rendered by browsers with different SVG support.

Use the batch converter only after that check when you have related, independently suitable PNG files. It accepts up to 20 PNG files in one batch, processes each independently, and lets successful SVGs remain downloadable if another item fails. Download the ZIP, sample several outputs, and keep the original PNG set so a failed or unsuitable trace can be corrected without loss.

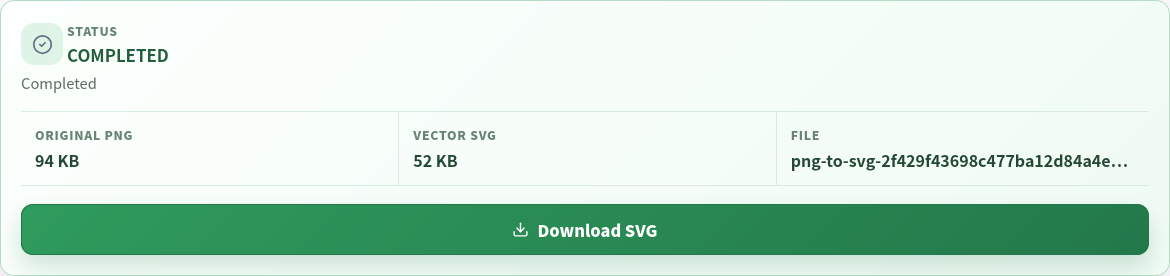

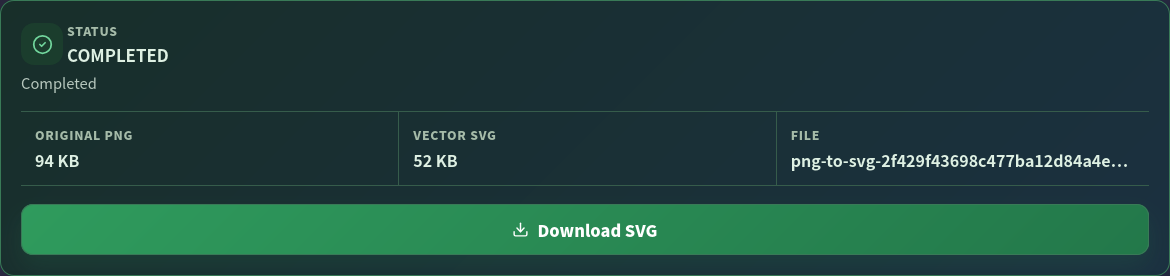

Download the SVG and review its actual paths and size.
Download the SVG and review its actual paths and size.
A simple mark is more traceable and remains more recognizable at favicon sizes.
A simple mark is more traceable and remains more recognizable at favicon sizes.
Compare outlines and holes with the source at the sizes that matter.
Compare outlines and holes with the source at the sizes that matter.

Build a favicon from a simplified square mark

A favicon is not a miniature poster. Begin with a square, high-resolution source, strong foreground/background contrast, and enough empty margin that the mark does not touch the edge. Remove small text, fine outlines, and decorative details that disappear at 16 pixels. If a full logo includes a wordmark, its symbol or monogram is often the better favicon source.

The Favicon Generator runs locally in the browser and accepts an image up to 20 MB. It creates 16px, 32px, and 48px favicon PNGs, 180px Apple touch, 192px and 512px Android icons, a multi-size `favicon.ico`, and a `site.webmanifest` in a ZIP. Open the small PNGs after generation; then place the files and manifest under the names your site actually references.

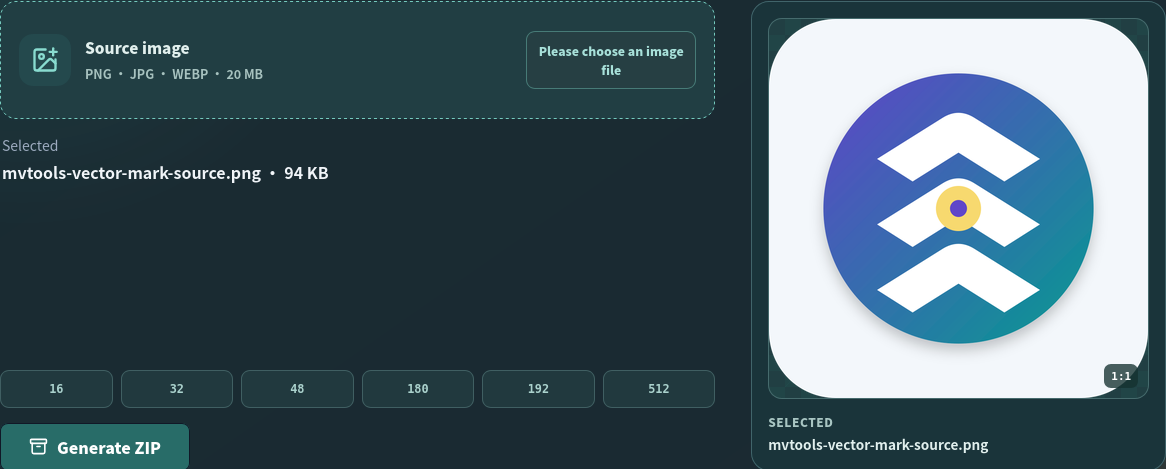

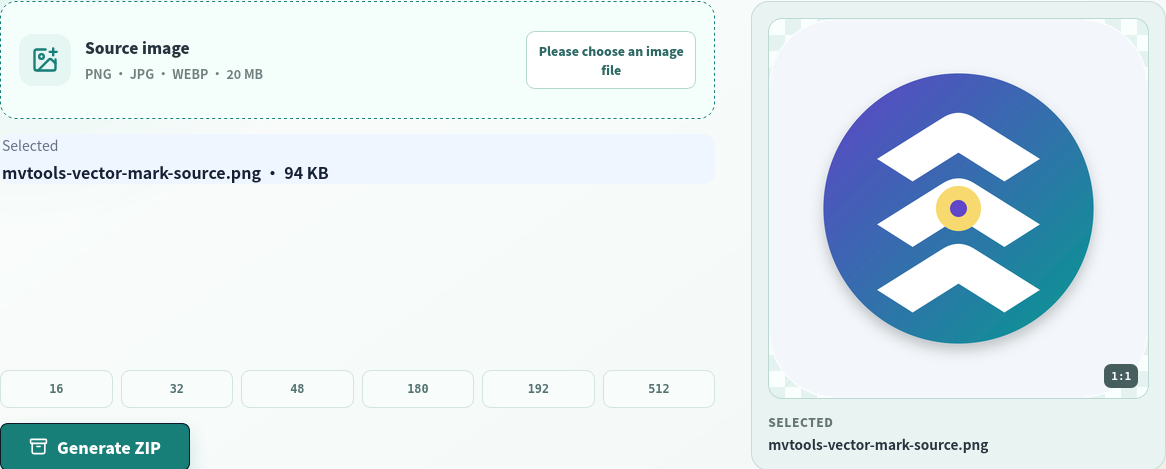

The generator runs in the browser; this source is not sent to the MV Tools backend.
The generator runs in the browser; this source is not sent to the MV Tools backend.

Keep the two data boundaries separate

PNG-to-SVG tracing sends a PNG to a server-side vtracer workflow. The configured limit is 20 MB per file, with a 16-megapixel image limit, a 2.5-megapixel tracing limit, a two-minute processing timeout, and temporary retention configured for 30 minutes with scheduled cleanup. Treat this as temporary server processing, not permanent storage or an exact deletion guarantee; submit only a shareable source and download the output promptly.

Favicon generation is browser-local, so its source image is not sent to the MV Tools backend. Even so, browser downloads, local file history, screenshots, and later website publication are part of the handling surface. Keep the original source separately and test the final files in the browsers and devices that matter for the site.

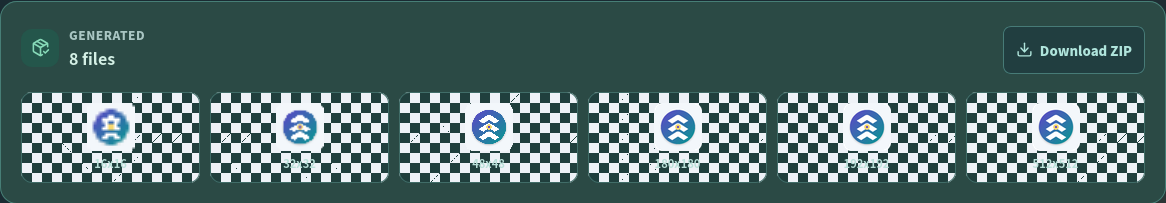

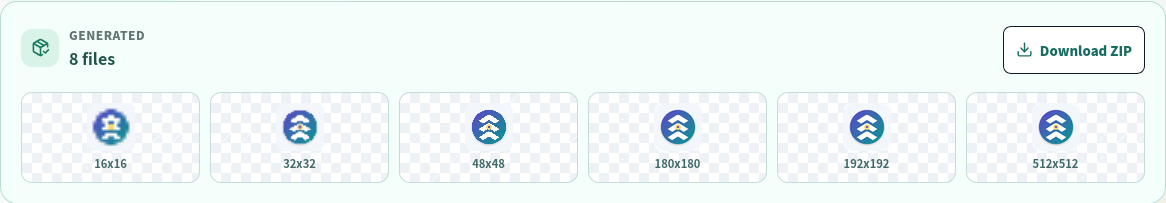

Inspect the tiny previews before placing files in a site.
Inspect the tiny previews before placing files in a site.

Frequently asked questions

Will PNG to SVG make a photo into a clean vector illustration?

Usually not. Tracing a photo can create a very complex SVG with many paths and a less natural appearance. Use it for simple, high-contrast artwork instead.

Should I use the batch converter for my first attempt?

No. Tune and inspect one representative PNG first, then batch related images once you know the chosen settings suit them.

Is the favicon source image uploaded?

No. Favicon generation runs in the browser. PNG-to-SVG tracing is a separate server-side workflow.
